Plumbing for Ice Makers

Ice makers can be absolutely heavenly during the hot summer, blessing you with instant ice cubes to chill your water and other beverages. However, did you know that the plumbing you’ve installed for your machine could be choking it if not installed properly? Here is all you need to know about plumbing for ice makers and why it’s important.

Why Is Proper Plumbing for Ice Makers Important?

Regardless of whether an industrial or residential, the function of an ice maker largely depends on having a reliable and steady supply of water. The primary purpose of a plumbing line is to supply adequate amounts of water to your ice maker so that it can freeze up a proper batch of ice cubes.

However, the amount of water required can vary from ice maker to ice maker. As such, the plumbing line installed should be able to meet those requirements by being able to supply water at a sufficient enough rate.

Knowing this, it can be concluded that there is no such thing as a universal plumbing line that would be compatible with all ice makers. If the proper plumbing line for your ice maker is not installed, it could compromise the function of your machine and lead to other problems down the line. The size of the plumbing line is determined based on the required water flow rate, which could be unique for each ice maker.

What Happens if I Get the Wrong Sized Plumbing line?

To make a full batch of ice, ice makers require a specific volume of water. If the plumbing line supplying your ice maker fails to deliver the necessary amount of water, a variety of issues can arise, impacting the ice-making process and the equipment’s longevity. Some of the problems include:

- - No ice production, leaving you without a fresh supply.
  - Smaller ice cubes, which can affect the quality and consistency of your ice.
  - Damage to evaporator plates, which can lead to more severe mechanical problems and costly repairs.
  - Increased wear and tear on the ice maker, potentially shortening its lifespan.
  - Inefficient operation, leading to higher energy consumption and utility costs.

Ensuring that your ice maker receives an adequate and consistent water supply is crucial for optimal performance. If you’re experiencing these issues, our team at King Heating, Cooling & Plumbing can help diagnose and resolve the problem, ensuring your ice maker functions properly and efficiently.

Plumbing for Ice Makers – What Factors Need to be Considered?

There are a variety of factors that you need to consider when installing plumbing for ice makers. Here is what you need to consider:

Water Flow

This is the most vital requirement of an ice maker that you need to factor in when getting a plumbing line installed for ice makers. While there may be some flexibility in terms of size, space, and whether or not to incorporate a shutoff valve, your ice maker’s water flow requirements must be accurately met. The failure to do so will result in any or all of the problems listed above.

Gallons per Minute (GPM) is generally the unit for measuring water flow. A 5 GPM plumbing line, for instance, will deliver 5 gallons of water to the ice maker every minute. The required water flow rate is usually determined by the size of the ice maker.

For residential or smaller commercial ice makers, a lower flow rate may suffice, typically around 1 to 3 GPM. However, for larger, industrial-scale ice makers, a significantly higher flow rate is necessary, often exceeding 5 GPM. This ensures that the ice maker can produce the intended volume of ice efficiently without overworking the machine, which can lead to mechanical failures or reduced lifespan.

Ensuring the correct water flow rate is essential for optimal performance. An inadequate flow can cause the machine to produce less ice or smaller cubes, strain internal components, and potentially lead to costly repairs or premature replacement. Thus, when installing or maintaining an ice maker, it’s crucial to work with experienced plumbing professionals who understand these requirements and can ensure that the plumbing system is properly configured to meet the machine’s specifications.

At King Heating, Cooling & Plumbing, our experts can assist you in selecting and installing the right plumbing lines for your ice maker, ensuring that your equipment functions efficiently and reliably, regardless of the scale of your operation.

Space

Generally speaking, the plumbing for the ice maker should be within 6 feet of the machine. This close proximity offers several practical advantages that contribute to the efficient and safe operation of the ice maker.

First and foremost, having the plumbing line nearby ensures that water delivery to the ice maker is direct and efficient, minimizing the risk of pressure loss or contamination that can occur over longer distances. This setup helps maintain consistent water flow, which is crucial for the optimal production of ice.

Another significant benefit of keeping the plumbing close to the ice maker is ease of access for maintenance and emergency situations. In the event of a leak, clog, or any other plumbing issue, being able to quickly access and shut off the water supply can prevent water damage and reduce the risk of more serious mechanical problems with the ice maker. This is particularly important in environments where time and efficiency are critical, such as in commercial kitchens or busy residential households.

Moreover, the closer proximity facilitates easier installation and maintenance. Plumbers and technicians can work more efficiently when the components are all within reach, reducing labor time and potentially lowering the cost of installation or repairs.

Having the plumbing line within 6 feet of the ice maker also allows for the convenient installation of additional features, such as a shutoff valve or water filter. A shutoff valve provides an easy and quick way to stop water flow to the machine when necessary, whether for maintenance, cleaning, or in the case of an emergency. A water filter can be installed to ensure that the water used in the ice maker is clean and free of impurities, which is particularly beneficial in areas with hard water or other water quality issues.

Overall, maintaining a close distance between the plumbing and the ice maker enhances the machine’s functionality, safety, and ease of maintenance.

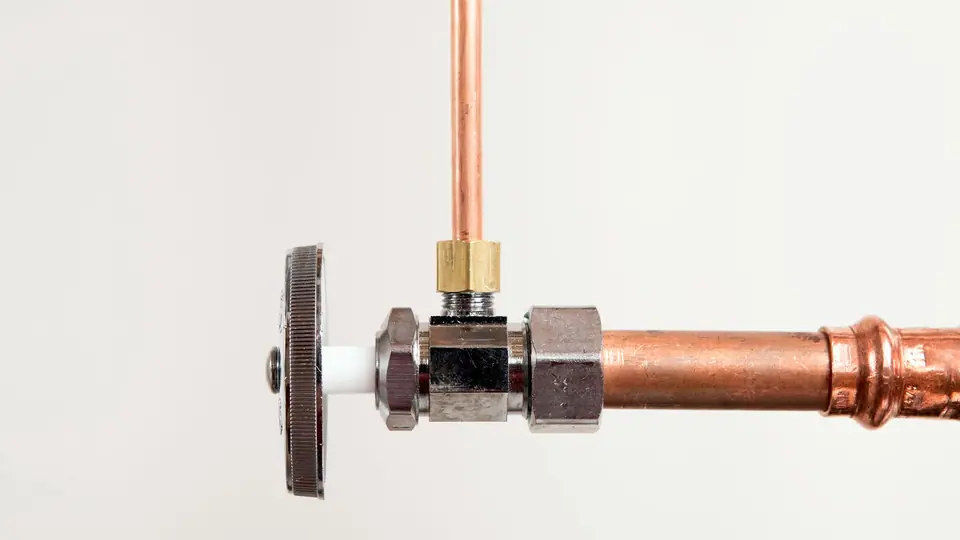

Shutoff Valve

A shutoff valve can be pictured as a contingency measure that allows you to immediately cut the water supply to your ice maker in case of a fault. Placing an extra shutoff valve between the plumbing and the machine is also something many people opt for in case the first valve ceases to function.

Saddle-type shutoff valves, also called self-piercing saddle valves, are the common choice that most people go for. While these valves are compatible with both plastic and copper plumbing lines, they have numerous shortcomings that make them a poor choice.

One of the most prominent downsides to these valves is that they are known for clogging the plumbing line from time to time, in doing so, cutting off the water supply to the ice maker. Also, these valves are quite prone to leakages, and the likelihood of this happening increases each time they are used. Furthermore, the rubber seals in these valves tend to wear off over time, allowing calcium deposits to accumulate.

Quarter turn shutoff valves are free from the issues discussed above and therefore are a much better option. Operating these valves is pretty simple and easy. All you have to do is to turn the lever a quarter of the way to cut off or open the water supply.

Size

The size of the plumbing, particularly the outer diameter of the pipe, plays a crucial role in ensuring the efficient operation of an ice maker. The correct pipe size is essential for maintaining adequate water flow and pressure, which are critical for the ice maker to function properly.

The outer diameter of the plumbing pipe determines the volume of water that can flow through it. If the pipe is too narrow, it may not supply enough water to meet the ice maker’s needs, leading to issues such as smaller ice cubes, reduced ice production, or even damage to the machine due to insufficient cooling or overheating. Conversely, if the pipe is too large, it might lead to unnecessary water wastage or installation complications, especially in settings where space is limited.

Typically, the manual that comes with your ice maker will include specific recommendations for the plumbing size required. This information is based on the manufacturer’s tests and specifications designed to ensure the optimal performance and longevity of the machine. The recommended pipe size considers factors such as the machine’s capacity, the expected water pressure, and the specific requirements of the refrigeration system.

It’s important to adhere to these recommendations as they ensure that the ice maker receives a consistent and adequate water supply. Using a pipe size different from what is recommended can compromise the machine’s efficiency and effectiveness. For example, an under-sized pipe may not deliver sufficient water volume, while an over-sized pipe may not maintain the necessary pressure for proper operation.

Additionally, other factors such as the material of the pipe and the overall plumbing layout can also affect the performance of the ice maker. Materials like copper, PVC, or PEX have different characteristics in terms of durability, flexibility, and resistance to corrosion, which can influence the long-term reliability of the plumbing setup.

Plumbing for Ice Makers – How to Install It

Installation of plumbing for ice makers is a multi-step process. Listed below are the steps that are generally followed in an installation procedure for residential ice makers:

- - Turn off the main valve to cut off the water supply to your home.
  - Turn on the kitchen sink to evacuate any water in the lines.
  - Drill the required number of holes needed to run the plumbing line from the water supply to the refrigerator.
  - Ensure that the layout of the line does not interfere with the usage of the cabinets.
  - Connect one end of the shutoff valve to the cold water supply line.
  - Place the copper water line with a compression nut into the other end of the valve.
  - Tighten the compression nut over the threads of the valve with a wrench.
  - Unplug the refrigerator (with the inbuilt ice maker) and pull it away from the wall.
  - Run the copper plumbing from the main supply through the cabinets to the back of your refrigerator.
  - Connect it to the water supply line connector outlet at the back of the refrigerator.
  - Ensure the connections at both ends are tight and secure.
  - Move the refrigerator back into its place, plug it in, and check for leaks or issues.

Plumbing for Ice Makers – Call a Professional

It is important to note that the installation steps discussed above have been simplified to facilitate better understanding. The actual procedure will likely be more complicated. A DIY installation comes with the risk of damaging your cabinets by drilling holes in the wrong place or choosing incorrect equipment and materials for the plumbing, leading to unnecessary expenses. King is an expert plumbing company that offers top-notch services, 24/7. For quality plumbing installation, contact us today to schedule your job.
